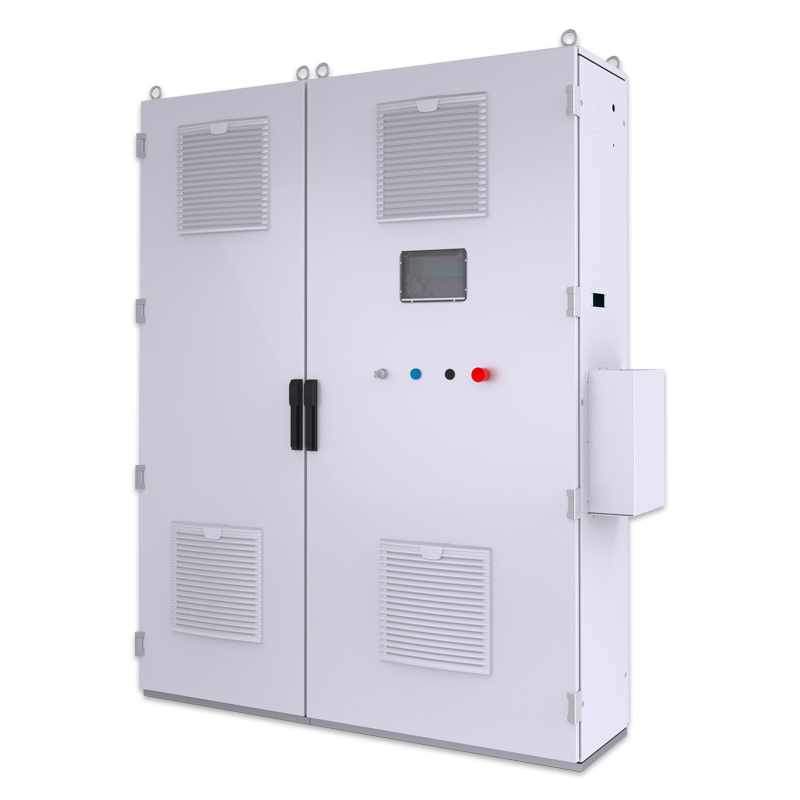

Wind power offshore main control system cabinet housing
It is installed on the top of the tower cylinder of the generator to realize the start and stop of the wind turbine, yaw control, auxiliary control, protection and monitoring, and realize the coordination of fan pitch control, yaw control and frequency converter control. The design and functionality can be customized to the needs of each wind farm.
Scope of Application
It is used to test the performance of the wheel with the actual car, including stability, durability and handling.
On the Sea
Outdoor
Product Advantage
01
High strength and durability
The cabinet structure is solid and reliable, which can resist the influence of external environment and vibration, provide long-term stable protection, and extend the service life of the equipment.
02
Reliable protection
Corrosion resistant materials and surface treatment process, the use of tight sealing structure and sealing materials to resist the erosion and oxidation of seawater, to ensure the long-term stability and reliability of the cabinet.
03
Space utilization
We focus on the compact design of our products to maximize the utilization of the space inside the cabinet, providing customers with greater equipment capacity and reducing footprint and cost.
04
Easy maintenance
Our products are designed with easy maintenance and scalability in mind, and the modular design allows for rapid replacement of faulty equipment, reducing maintenance time.
05
Highly customized
We offer highly customised products, tailored to the needs of our customers to ensure the best fit and functionality to meet a wide range of special requirements.
Technical Parameter
Size(mm)(W*H*D) (1000+600)*1800*500(Combined cabinets)、800*2000*600(Single cabinet),customizable
Class of protection IP54、customizable
Anticorrosion grade C3H、C4、C5、customizable
Colour RAL7035(Fine orange lines/flatness),customizable
Routing mode Bottom line, side line, customizable(標(biāo)配100高底座)
Default configuration Base material (SGCC, SGLCC, customizable), lock, hinge, base, ring, file bag, door stopper, travel switch, light, mounting plate
